Big Size Stainless Steel Sheets Vacuum Coater

Large multi arc ion plating introduces various gas discharge modes into the field of vapor deposition under vacuum situation. The whole vapor deposition process is carried out in plasma process. It can be coated not only on the surface of metal products, but also on the surface of non-metal products. It can be plated with metal film, Titanium nitride, titanium carbide, zirconium nitride, chromium nitride, titanium oxide and other films.

>> Applications <<

Description

Advantages

Full machine body with high-quality stainless steel304, double-layer cooling water design.

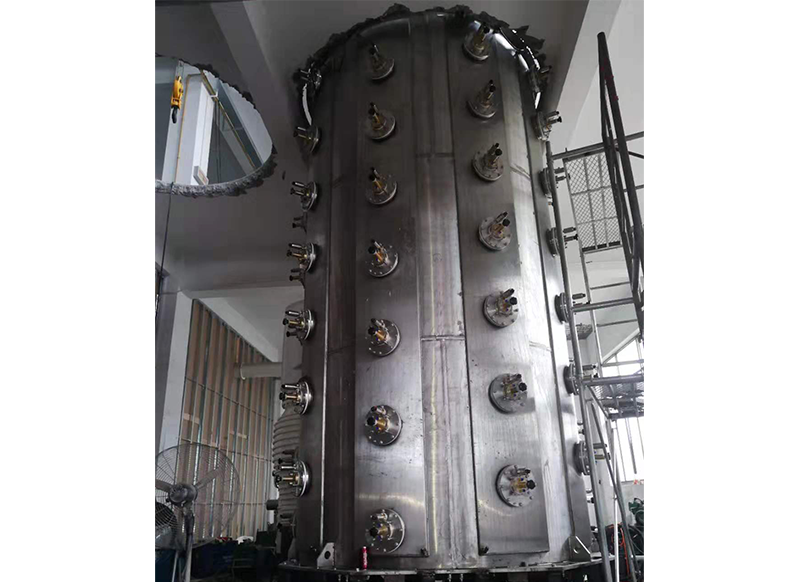

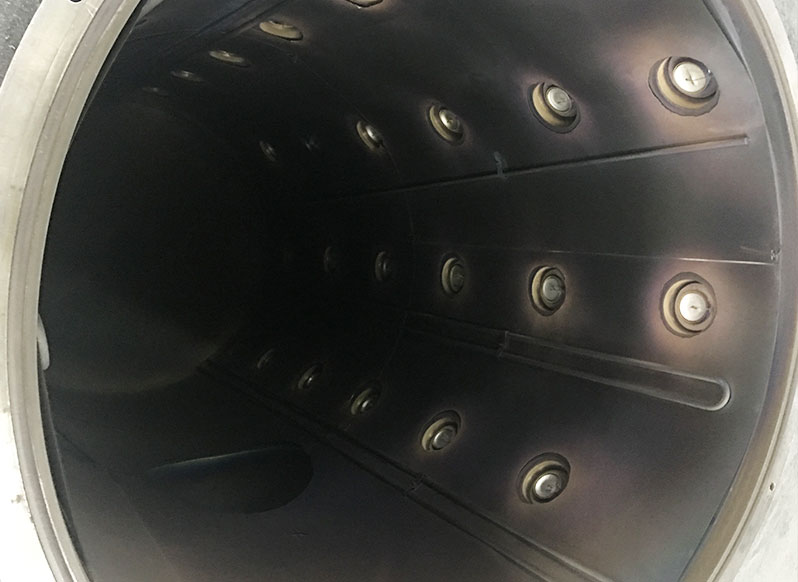

Several sets of newly developed ion arc sources are reasonably equipped to effectively ensure the stability and uniformity of arc source sputtering.

The multi-channel air intake system is adopted to accurately control the gas flow to meet your requirements for a variety of compound films.

Combined with pulse bias technology, the electric particle energy is greatly improved, so as to obtain excellent film adhesion and finish.

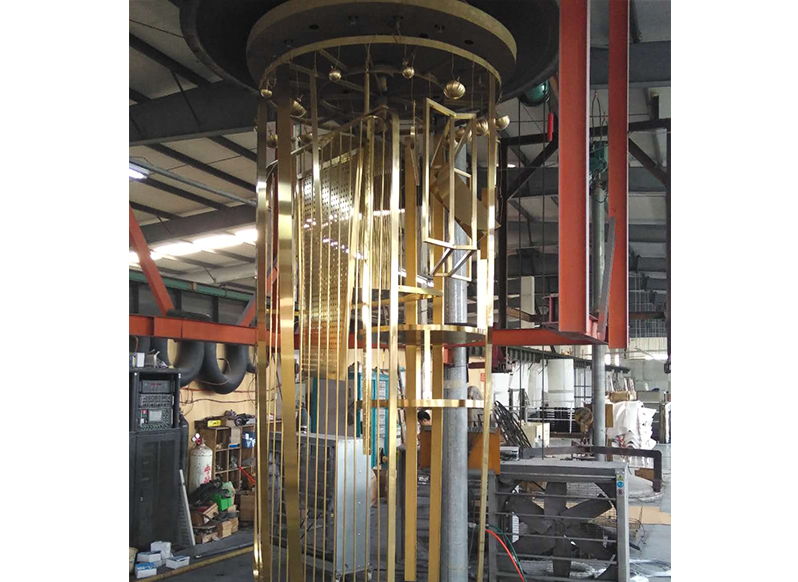

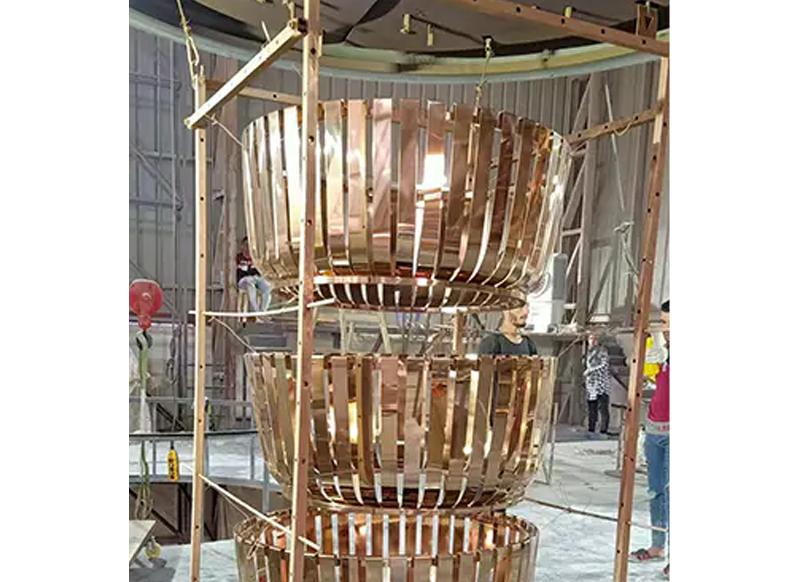

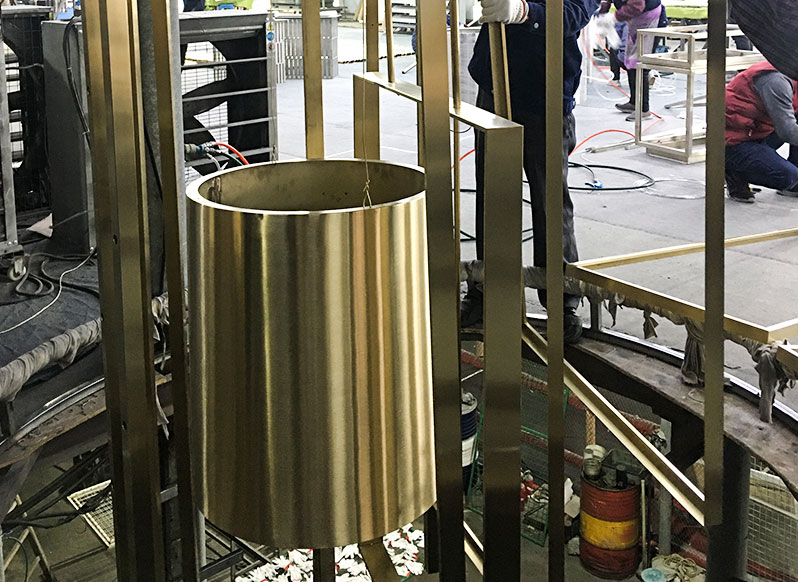

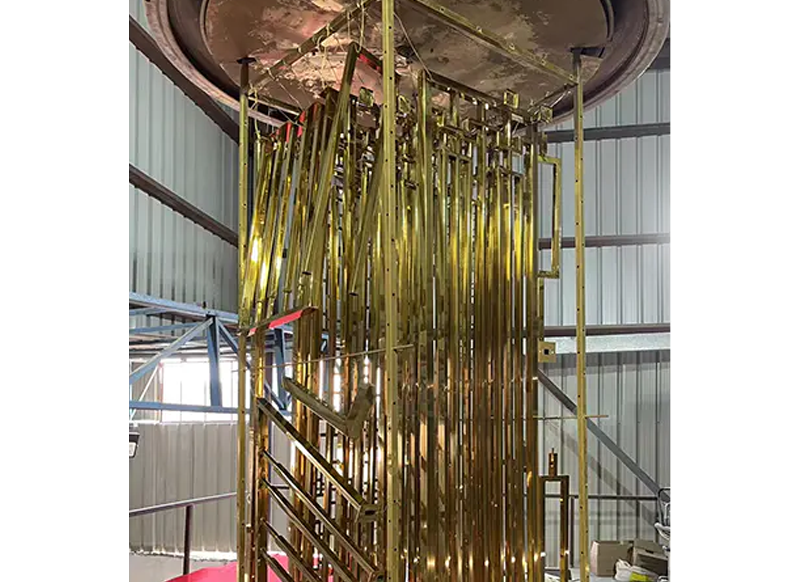

The equipment is widely used in: large and medium-sized hardware products, glass crafts, ceramic crafts, such as stainless steel furniture, door frames, stair handrails, stainless steel plates, sanitary products, watches and clocks, knives, molds, crystal glass, golf tools, lamps, spectacle frames, ceramic tiles, floor tiles, etc.

Process materials: stainless steel, copper, iron, zinc alloy, aluminum, ABS, glass, ceramics, etc.

The surface state of the process materials: bright surface of ordinary electroplating, dumb surface (semi dumb, full dumb), process electroplating wrinkles, brush, raindrops, etc.

The plating colors are: translucent, gold, silver, rose gold, black, green, blue, purple, rainbow, tin, ZrN, TiAlN, tic, TiCN, CrN, Al2O3, etc.

Uniformity

Uniform film deposition rate

LOWER COST

SINGLE PRODUCT COATING COST IS LOWER

HIGH SPEED

FAST DEPOSITION SPEED, HIGH IONIZATION RATIO AND BIG PRODUCTION

EASY OPERATION

FULL AUTO, EASY LEAN AND OPERATE

COMPLETE ENVIRONMENTAL

WITHOUT ANY POLLUTION

REMOTE CONTROL

REMOTE CHECKING AND INSPECTION

Device parameters

MODEL

HY-2225

HY-2030

HY-2240

HY-2245

CHAMBER SIZE

Ø2200*2500mm

Ø2000*3000mm

Ø2200*4000mm

Ø2200*4500mm

CHAMBER STRUCTURE

Vertical single door, horizontal single door, vertical top door

COATING METHOD

Ion with bias technology

ULTIMATE VACUUM

8.0*10-4Pa (empty load)

VACUUM TIME

Empty load from atmosphere to 5.0E-2 less than 15min

CONSUMPTION MATERIAL

Titanium, chromium, zirconium, iron, titanium & aluminum alloy

COATING COLOR

translucent, gold, silver, rose gold, black, green, blue, purple, rainbow, TiN, ZrN, TiAlN, TiC, TiCN, CrN, Al2O3, etc

CONTROL METHOD

Full auto, semi-auto, manual, PLC touch screen

SPECIAL REQUIREMENTS

Customized
