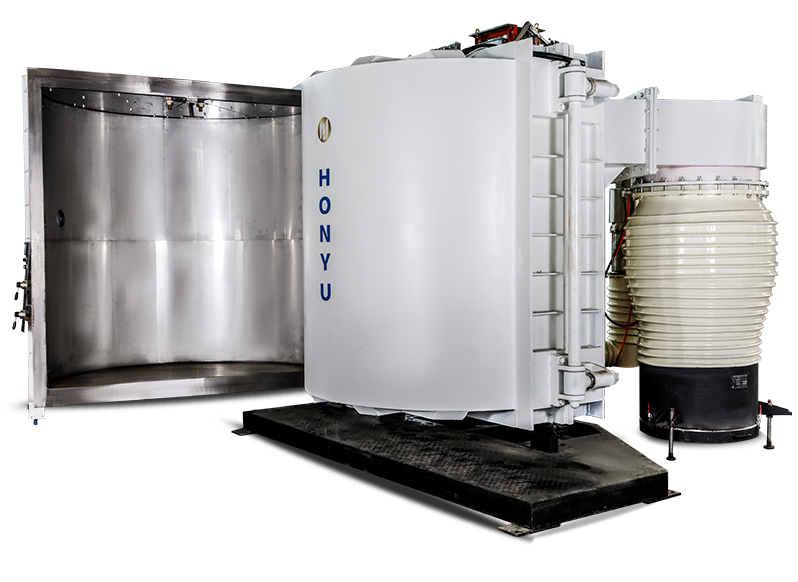

Vertical Single Door Thermal Evaporation Vacuum Coating Machine

Evaporation coating equipment is a special equipment specialized in evaporating aluminum wire, chromium wire and copper wire on the plastic surface. It uses resistance heating to melt and vaporize the metal wire, so that metal molecules can be deposited on the substrate to obtain a smooth metal film with high reflectivity, so as to achieve the purpose of decorating and beautifying the surface of articles.

>> Applications <<

Description

The evaporation process is a sustainable and environmentally friendly technology with no waste water and no pollution discharge. In addition, it does not produce any harmful substances and does not emit chemicals. Vacuum coating equipment is equipped with a simple and easy-to-use visual interface, the operation cycle is automatic. The film is bright, reflective, practical and beautiful.

The use of vacuum automatic evaporation coating equipment means low operating costs, reliable stability, and a high degree of human-friendly coating equipment. It adopts the vertical double-door design, which greatly improves the production efficiency, and the coating layer has excellent compactness and adhesion PLC intelligent automatic control, with HMI human-machine touch interface, so that you do not understand the equipment also worry about the operation.

Advantages

The equipment is widely used in cosmetics, toys, mobile phones, home decorations, automobiles, all kinds of small household appliances, bathroom spraying, acoustics, clocks and watches and other industries.

Process materials: ABS, PS, PP, PC, PVC, TPU, nylon, glass, ceramics, metal, etc.

The surface state of the process materials: bright surface of ordinary electroplating, dumb surface (semi dumb, full dumb), process electroplating wrinkles, wire drawing, raindrops, etc.

The plating colors are: translucent, gold, silver, rose gold, black, red, green, blue, pink, purple, gradient, rainbow, etc.

Uniformity

Uniform film deposition rate

LOWER COST

SINGLE PRODUCT COATING COST IS LOWER

HIGH SPEED

FAST DEPOSITION SPEED, HIGH IONIZATION RATIO AND BIG PRODUCTION

EASY OPERATION

FULL AUTO, EASY LEAN AND OPERATE

COMPLETE ENVIRONMENTAL

WITHOUT ANY POLLUTION

REMOTE CONTROL

REMOTE CHECKING AND INSPECTION

Device parameters

MODEL

HY-1618

HY-1820

HY-2020

CHAMBER SIZE

Ø1600*1800mm

Ø1800*2000mm

Ø2000*2000mm

CHAMBER STRUCTURE

Vertical single door, vertical double doors, horizontal single door

COATING METHOD

Resistance heating, ion bombarding

ULTIMATE VACUUM

8.0*10-4Pa (empty load)

VACUUM TIME

Empty load from atmosphere to 5.0E-2 less than 6min

CONSUMPTION MATERIAL

Tungsten wire, aluminum wire, copper wire, chromium wire, etc

COATING COLOR

translucent, gold, silver, rose gold, black, red, green, blue, pink, purple, gradient, rainbow, etc.

CONTROL METHOD

Full auto, semi-auto, manual, PLC touch screen

SPECIAL REQUIREMENTS

Customized
