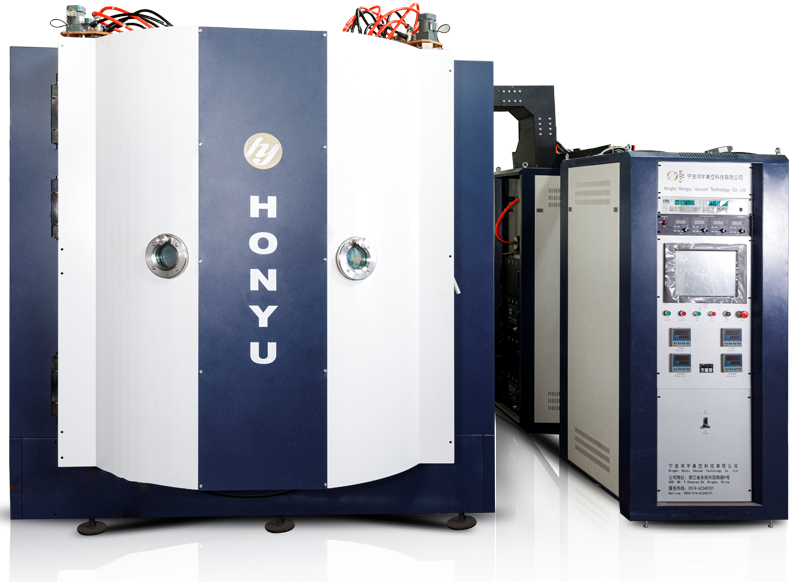

DC Magnetron Sputtering Coating Machine

Magnetron sputtering coating equipment is a combination of DC magnetron sputtering, MF magnetron sputtering and multi arc ion technology. It can adapt to a wide range of coating targets. Whether metal, medium and composite materials can be coated and formed by sputtering process, so as to make the film have the characteristics of adhesion, density, repeatability and color consistency. It can be plated with metal film, titanium nitride, titanium carbide, zirconium nitride, chromium nitride, titanium oxide, tin, ZrN, TiAlN, tic, TiCN, CrN, Al2O3 and other films.

>> Applications <<

Description

Advantages

Full machine body with high-quality stainless steel304, double-layer cooling water design

Several sets of newly developed ion arc sources are reasonably equipped to effectively ensure the stability and uniformity of arc source sputtering.

The multi-channel air intake system is adopted to accurately control the gas flow to meet your requirements for a variety of compound films.

Combined with pulse bias technology, the electric particle energy is greatly improved, so as to obtain excellent film adhesion and finish.

The equipment is mainly widely used in: hardware products, glass crafts, ceramic crafts, such as bathroom products, watches and clocks, knives, molds, crystal glass, golf tools, lamps, glasses frames, ceramic tiles, floor tiles, etc.

Process materials: stainless steel, copper, iron, zinc alloy, aluminum, ABS, glass, ceramics, etc.

The surface state of the process materials: bright surface of ordinary electroplating, dumb surface (semi dumb, full dumb), process electroplating wrinkles, brush, raindrops, etc.

The plating colors are: translucent, gold, silver, rose gold, black, dark black, green, blue, purple, rainbow, etc.

Uniformity

Uniform film deposition rate

LOWER COST

SINGLE PRODUCT COATING COST IS LOWER

HIGH SPEED

FAST DEPOSITION SPEED, HIGH IONIZATION RATIO AND BIG PRODUCTION

EASY OPERATION

FULL AUTO, EASY LEAN AND OPERATE

COMPLETE ENVIRONMENTAL

WITHOUT ANY POLLUTION

REMOTE CONTROL

REMOTE CHECKING AND INSPECTION

Device parameters

MODEL

HY-1214

HY-1416

HY-1618

CHAMBER SIZE

Ø1200*1400mm

Ø1400*1600mm

Ø1600*1800mm

CHAMBER STRUCTURE

Vertical single door

COATING METHOD

Ion with bias technology, and sputtering

ULTIMATE VACUUM

8.0*10-4Pa (empty load)

VACUUM TIME

Empty load from atmosphere to 5.0E-2 less than 15min

CONSUMPTION MATERIAL

Titanium, chromium, zirconium, iron, titanium & aluminum alloy, all type MF and DC sputtering targets.

COATING COLOR

translucent, gold, silver, rose gold, black, dark black, green, blue, purple, rainbow, TiN, ZrN, TiAlN, TiC, TiCN, CrN, Al2O3, etc

CONTROL METHOD

Full auto, semi-auto, manual, PLC touch screen

SPECIAL REQUIREMENTS

Customized
