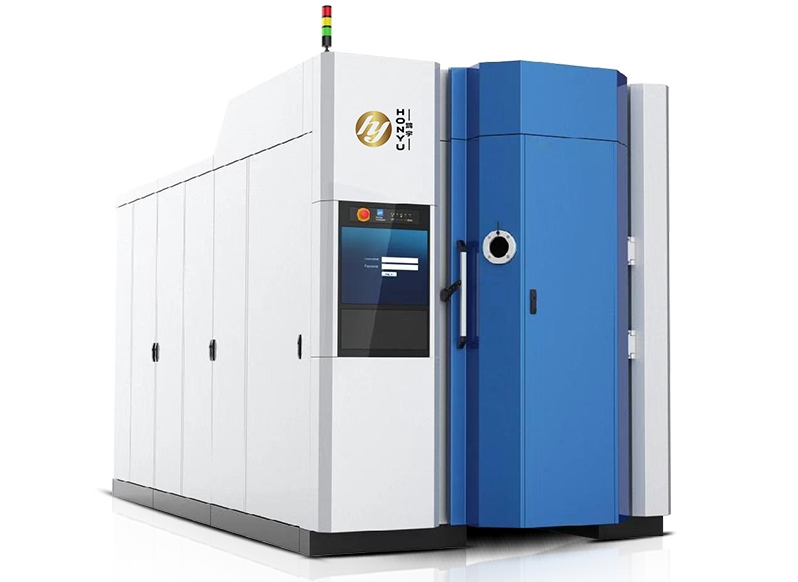

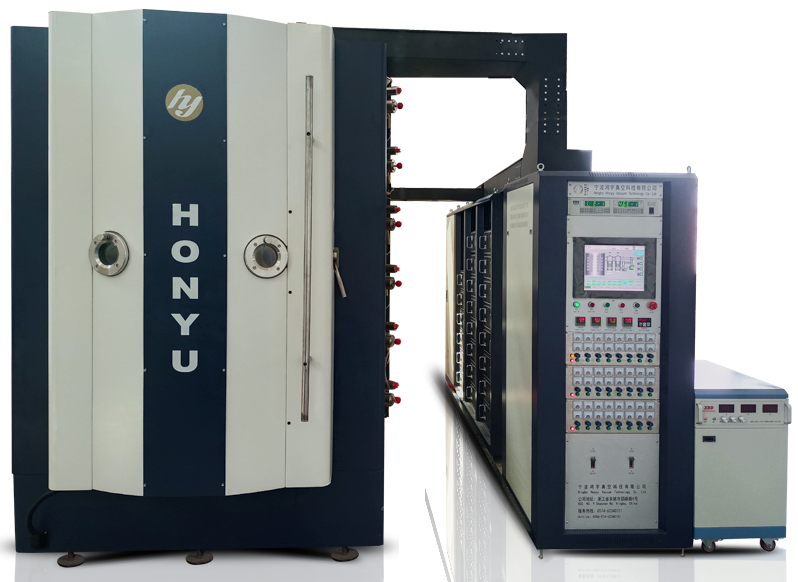

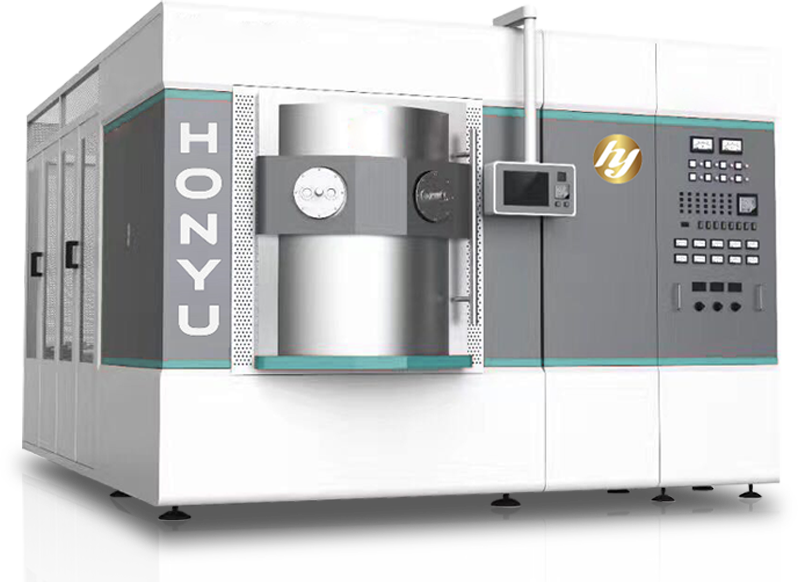

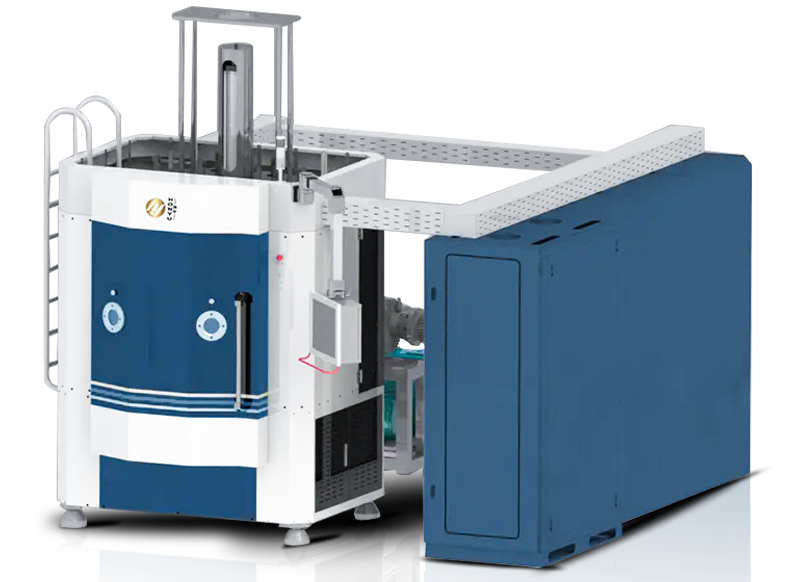

High-End Products PVD Vacuum Coating Machine

Magnetron sputtering coating equipment is a combination of DC magnetron sputtering, MF magnetron sputtering and multi arc ion technology. It can adapt to a wide range of coating targets. Whether metal, medium and composite materials can be coated and formed by sputtering process, so as to make the film have the characteristics of adhesion, density, repeatability and color consistency. It can be plated with metal film, titanium nitride, titanium carbide, zirconium nitride, chromium nitride, titanium oxide, tin, ZrN, TiAlN, tic, TiCN, CrN, Al2O3 and other films.

>> Applications <<

Advantages

Full machine body with high-quality stainless steel304, double-layer cooling water design

Several sets of newly developed ion arc sources are reasonably equipped to effectively ensure the stability and uniformity of arc source sputtering.

The multi-channel air intake system is adopted to accurately control the gas flow to meet your requirements for a variety of compound films.

Combined with pulse bias technology, the electric particle energy is greatly improved, so as to obtain excellent film adhesion and finish.

The equipment is mainly widely used in: hardware products, glass crafts, ceramic crafts, such as bathroom products, watches and clocks, knives, molds, crystal glass, golf tools, lamps, glasses frames, ceramic tiles, floor tiles, etc.

Process materials: stainless steel, copper, iron, zinc alloy, aluminum, ABS, glass, ceramics, etc.

The surface state of the process materials: bright surface of ordinary electroplating, dumb surface (semi dumb, full dumb), process electroplating wrinkles, brush, raindrops, etc.

The plating colors are: translucent, gold, silver, rose gold, black, dark black, green, blue, purple, rainbow, etc.

Uniformity

Uniform film deposition rate

LOWER COST

SINGLE PRODUCT COATING COST IS LOWER

HIGH SPEED

FAST DEPOSITION SPEED, HIGH IONIZATION RATIO AND BIG PRODUCTION

EASY OPERATION

FULL AUTO, EASY LEAN AND OPERATE

COMPLETE ENVIRONMENTAL

WITHOUT ANY POLLUTION

REMOTE CONTROL

REMOTE CHECKING AND INSPECTION

Device parameters

MODEL

HY-1214

HY-1416

HY-1618

CHAMBER SIZE

Ø1200*1400mm

Ø1400*1600mm

Ø1600*1800mm

CHAMBER STRUCTURE

Vertical single door

COATING METHOD

Ion with bias technology, and sputtering

ULTIMATE VACUUM

8.0*10-4Pa (empty load)

VACUUM TIME

Empty load from atmosphere to 5.0E-2 less than 15min

CONSUMPTION MATERIAL

Titanium, chromium, zirconium, iron, titanium & aluminum alloy, all type MF and DC sputtering targets.

COATING COLOR

translucent, gold, silver, rose gold, black, dark black, green, blue, purple, rainbow, TiN, ZrN, TiAlN, TiC, TiCN, CrN, Al2O3, etc

CONTROL METHOD

Full auto, semi-auto, manual, PLC touch screen

SPECIAL REQUIREMENTS

Customized

Ningbo Honyu Vacuum Technology Co., Ltd.

Ningbo Honyu Vacuum Technology Co., Ltd. is well-known China High-End Products PVD Vacuum Coating Machine suppliers, located in Ningbo, a port city in Hangzhou Bay Economic Belt, China.

After 30 years of technical precipitation, the company has hired senior design consultants, experts and senior engineers, and a professional military technology team. Our company implements the one-stop service model at domestic and overseas, formulates the design scheme according to the needs of customers, as well as the process flow of equipment commissioning operation and quality control in production and operation. With high-quality after-sales service and lifelong technical guidance, we escort customers' production and development and avoid worries. The process turnkey project provides strong technical support for the development of well-known coating manufacturers at domestic and overseas. As a famous OEM/ODM High-End Products PVD Vacuum Coating Machine company, our company integrates R & D, design, production and sales, and is based on high-grade and high-end markets.

The main products are: multi arc ion coating equipment, magnetron sputtering coating equipment, bathroom hardware decoration coating equipment, optical coating equipment, glass ceramic special coating equipment, DLC tool coating equipment, custom High-End Products PVD Vacuum Coating Machineetc. It is widely used in hardware sanitary ware, large furniture board, clock, mobile phone, aerospace, electronic products, automobile, mold tools, various decorations and other industries.

With advanced process technology to meet the needs of environmental protection, the shortcomings of water electroplating are solved. Laws and regulations correspond to domestic and international environmental protection policies to purify water for the earth.

Experience

30+

30 years of precipitation

Employee

100+

More than 100 employees

Technology Precipitation, Strength Foundation.

  • Service

    We focus on developing high-quality products for top-end markets. Our products are in line with international standards. We can provide whole coating technology supporting.

  • Multiformity

  • Quality

    90% of our machine parts are produced by ourselves in our own factory, so that we can control the quality, which can ensure the quality of the machines.

  • Cost

    We are machine manufactures, so we can offer the price and products directly.

  • Customization

    We have a strong R&D team, which can develop and produce according to the special needs or samples provided by customers.

Honor

The Honor
We Have Received.

Based on the development concept of "based on domestic and facing the world", the company keeps pace with the times, and is willing to join hands with domestic and foreign customers to develop together and create a better future.

NEXT

FAQ

  • 5. WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

    Mainly is used for metal, sanitary wares, big size furnitures and sheet, watch, mobile phone, aerospace industry, electrical parts, automobile, mould and tools, all decoration industries and so on.

  • 4. WHAT PRODUCTS CAN YOU OFFER?

    We focus on all types of vacuum coating machines.

  • 3. ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

    We are PVD machine manufacture, we also have our own domestic and international sales department. We produce and sell all by ourselves.

  • 2. What is the information needed from the customers to give the quotation?

    The products material, colors, production capacity, machine size and so on.

  • 1. HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?

    We will reply to you within 12 hours of the working day.
