PVD (Physical Vapor Deposition) coating is a process used to apply a thin film of material onto a surface. PVD coatings are often used to improve the wear resistance, corrosion resistance, and aesthetic properties of metal parts. The PVD coating process involves vaporizing a target material (such as titanium or chromium) using high-energy methods, such as electrical bombardment or laser ablation, and depositing the vapor onto a substrate. The resulting film is typically very thin, on the order of a few micrometers, and has excellent adhesion to the substrate. PVD coatings are used in a variety of applications, including the decorative coating of automotive and consumer electronics parts, as well as in the production of cutting tools and medical implants.

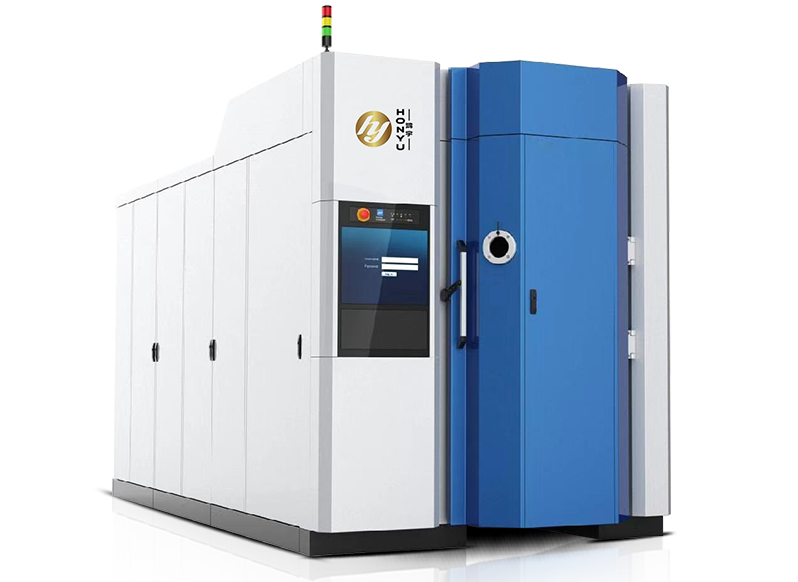

Full machine body with high-quality stainless steel304, double-layer cooling water design.
Several sets of newly developed ion arc sources are reasonably equipped to effectively ensure the stability and uniformity of arc source sputtering.
The multi-channel air intake system is adopted to accurately control the gas flow to meet your requirements for a variety of compound films.
Combined with pulse bias technology, the electric particle energy is greatly improved, so as to obtain excellent film adhesion and finish.
The equipment is mainly widely used in: hardware products, glass crafts, ceramic crafts, such as bathroom products, watches and clocks, knives, molds, crystal glass, golf tools, lamps, glasses frames, ceramic tiles, floor tiles, etc.
Process materials: stainless steel, copper, iron, zinc alloy, aluminum, ABS, glass, ceramics, etc.
The surface state of the process materials: bright surface of ordinary electroplating, dumb surface (semi dumb, full dumb), process electroplating wrinkles, brush, raindrops, etc.
The plating colors are: translucent, gold, silver, rose gold, black, green, blue, purple, rainbow, TiN、ZrN、TiAlN、TiC、TiCN、CrN、Al2O3, etc.
Uniform film deposition rate
SINGLE PRODUCT COATING COST IS LOWER
FAST DEPOSITION SPEED, HIGH IONIZATION RATIO AND BIG PRODUCTION
FULL AUTO, EASY LEAN AND OPERATE
WITHOUT ANY POLLUTION
REMOTE CHECKING AND INSPECTION
